RIBBON BLENDER 200 KG

200 Kg / 500 Liter Ribbon Blender – Masterly Engineering India Pvt. Ltd.

Product Overview

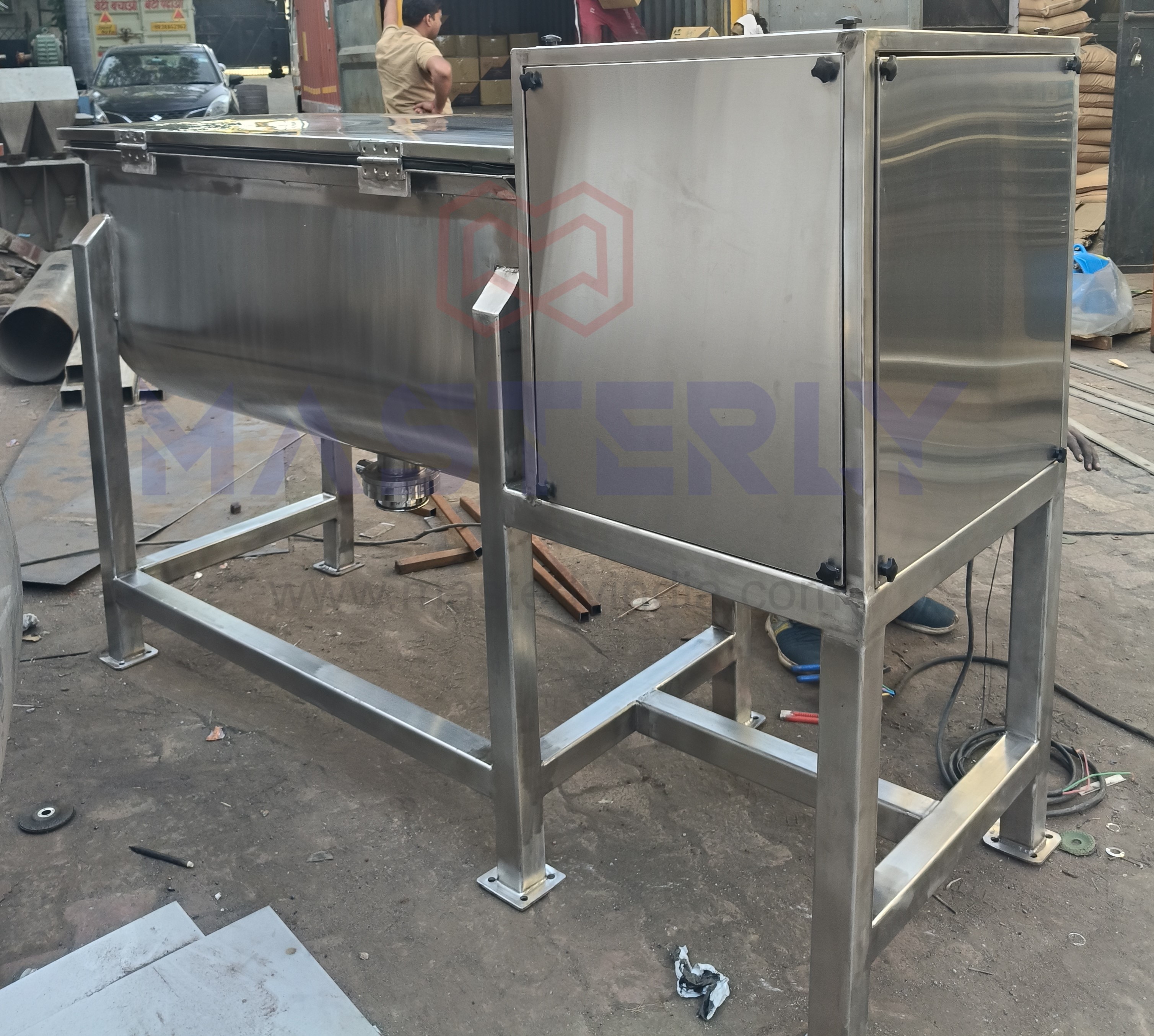

The 500 Liter Ribbon Blender (Capacity: 200 Kg per batch) by Masterly Engineering India Pvt. Ltd. is a highly efficient and durable industrial mixing machine designed for homogeneous blending of dry powders, granules, and semi-wet materials. It is widely used in the food, pharmaceutical, chemical, cosmetic, and nutraceutical industries.

This blender ensures uniform and consistent mixing through a dual helical ribbon agitator that moves material both radially and laterally within a U-shaped trough. Built with precision engineering and high-grade stainless steel, the unit guarantees excellent performance, hygiene, and long service life.

Special Features

Uniform and gentle mixing without material degradation

Easy discharge and minimal residue retention

Dust-tight cover with gasket for clean operation

Easy cleaning and low maintenance design

Robust construction suitable for continuous operation

Energy-efficient gearbox and motor assembly

Customizable design as per process requirements

Applications

Food Industry: Spices, flour, premixes, protein powder, nutritional blends

Pharmaceuticals: Powder formulations, bulk drugs, nutraceuticals

Chemicals: Detergents, pigments, fertilizers, polymers

Cosmetics: Talcum, herbal powders, scrub bases

Why Choose Masterly Engineering

In-house design and manufacturing under strict quality control

Use of precision laser cutting and CNC fabrication

Heavy-duty industrial-grade build quality

Reliable after-sales support and service

Customization as per client needs

Model ME-RB-500

Working Capacity 500 Liters (Approx. 200 Kg per batch depending on material bulk density)

Material of Construction (MOC) SS 304

Ribbon Type Double Helical Ribbon – Inner and Outer for Uniform Mixing

Trough Shape U-Shaped Heavy-Duty Fabricated Body

Drive System Gearbox-driven / Direct coupled motor

Motor Power 5 HP

Speed 35 RPM

Discharge Bottom-operated Butterfly Valve /

End Plates 4 mm

Bearing -UCP208

Safety Features Limit switch on top cover, emergency stop button, safety guards

Surface Finish Internal mirror polish – 220 grit / External matt finish

Power Supply 3 Phase, 415 V, 50 Hz

Approx. Weight 450 – 550 Kg
