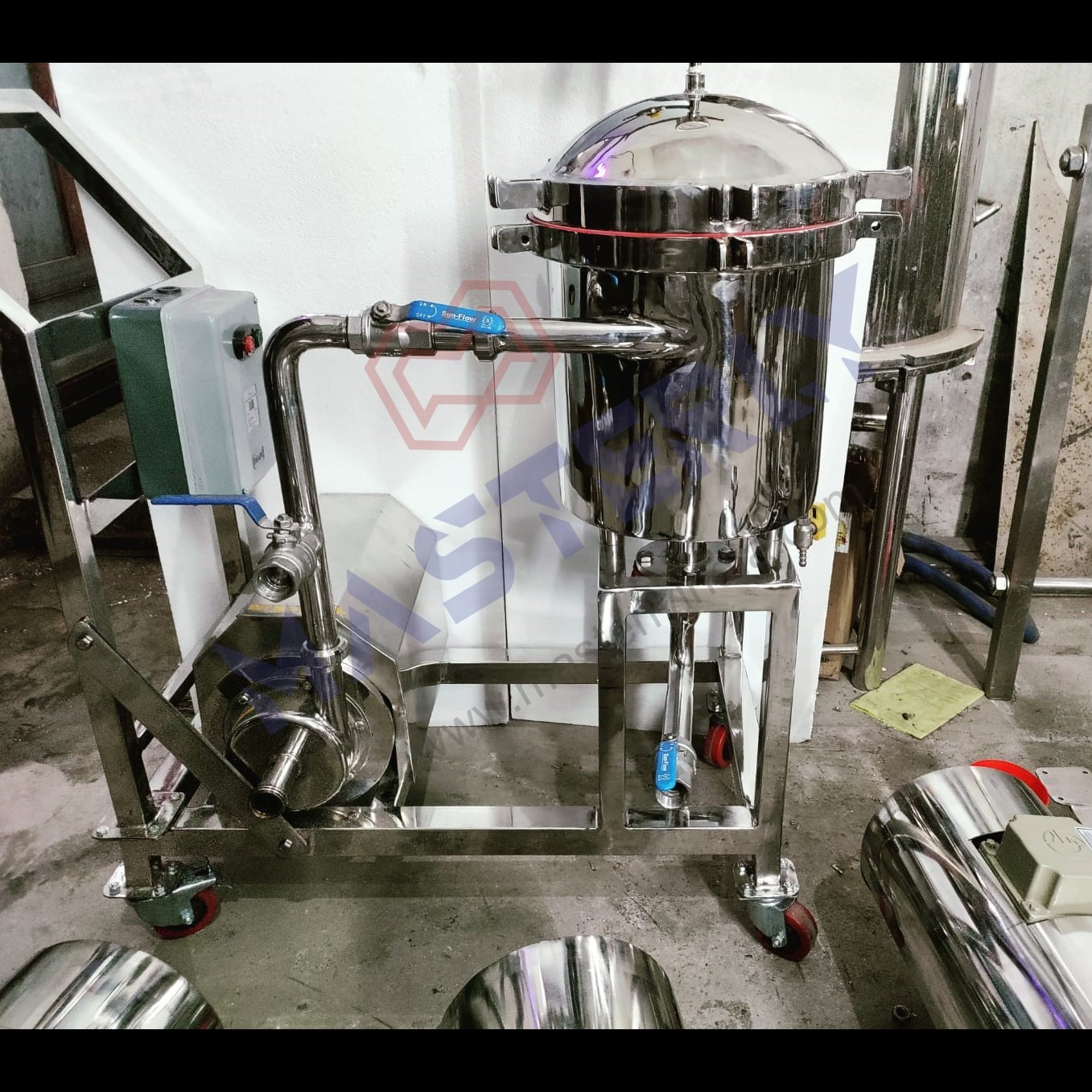

Masterly® Sparkler Filter Press
The Masterly Engineering Sparkler Filter Press is a high-performance liquid filtration system designed for crystal-clear filtration in pharmaceutical, chemical, food, beverage, and cosmetic industries. Built to GMP standards, it ensures zero leakage, high efficiency, and maximum product recovery while maintaining easy cleaning and operation.
Working Principle
The unfiltered liquid is pumped into the filter press under pressure. It passes through multiple horizontally arranged filter plates, each fitted with filter media (cloth, paper, or membrane). Solids are retained on the media, and the filtrate flows out through a central outlet. The multi-plate design offers a large filtration area in a compact footprint.
Key Features
- Material of Construction: SS 304 / SS 316 / SS 316L
- Zero Holdup Design for maximum yield
- Leak-proof Sealing for pure, contamination-free output
- Easy to Operate & Maintain with quick dismantling
- Compact Vertical Design to save floor space
- Multiple Filter Plates for high throughput
Technical Specifications
- Capacity Range: 5 LPH to 20,000 LPH
- Filter Plates: 8 to 24 (customizable)
- Filtration Area: 1 – 20 m²
- Filter Media: Cloth / Paper / Membrane
- Surface Finish: Mirror / Matt Polish
- Operating Pressure: Up to 7 kg/cm²
Applications
- Pharmaceuticals: Syrups, API solutions, injectables
- Food & Beverages: Edible oils, juices, wines, beer
- Chemicals: Fine chemicals, intermediates
- Cosmetics: Perfumes, lotions, creams
- Industrial: Lubricants, resins, dyes
Why Choose Masterly® Sparkler Filter Press?
- GMP & Hygienic Design for regulated industries
- Consistent Filtration Quality for critical applications
- Custom-Built Models to match production needs
- Proven Reliability with over a decade of manufacturing excellence
