High-Quality Multi Mill Machine
Best in Design • Best in Performance • Best in Quality • Best in Price • Best in Warranty
Overview:

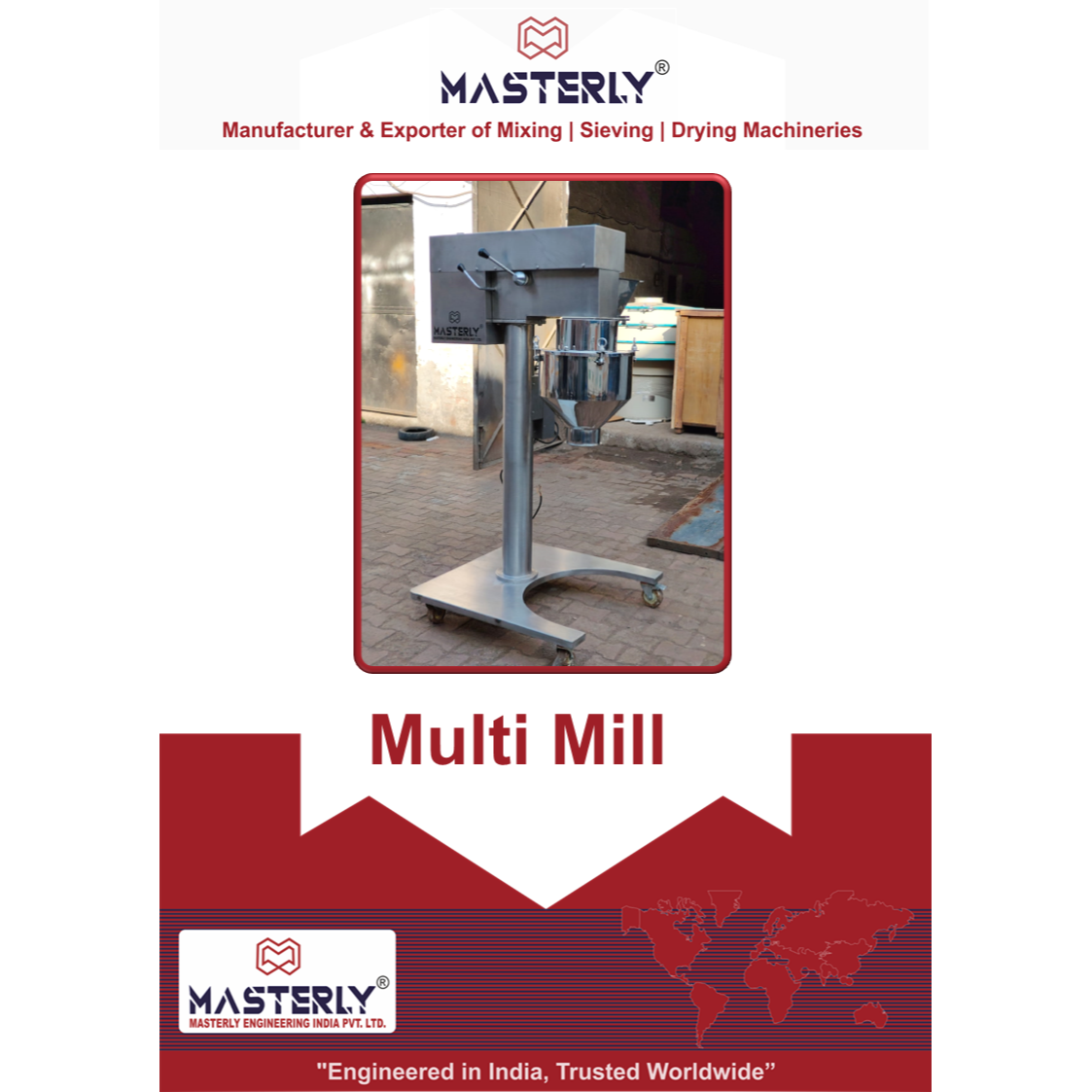

The Masterly® Multi Mill is a versatile and efficient milling machine widely used for high-speed granulating, pulverizing, mixing, shredding, and chopping of dry and wet materials. Commonly used in the pharmaceutical, chemical, cosmetic, and food industries, the Multi Mill offers high output and uniform particle size with minimal heat generation.
Key Features:
· High-Speed Operation: Variable speed drive allows for adjustment based on material characteristics.
· Sturdy Construction: Made with high-grade stainless steel (SS 304/316) for durability and hygiene.
· Multiple Blade Options: Interchangeable screens and beaters enable customized processing.
· Easy Cleaning & Maintenance: Tool-free dismantling of parts for fast cleaning and changeover.
· Compact Design: Space-saving structure suitable for large-scale production environments.
Technical Specifications:
· Motor: 1 – 7.5 HP (customizable)
· Output: Up to 200 kg/hr (depending on product and screen)
· Screen Diameter: 250 – 300 mm
· Material of Construction: SS 304/316
· Safety Features: Overload protection, interlocking system
Advantages:
· Uniform output with minimal fines
· Dust-free operation with optional dust extractor
· Energy-efficient and operator-friendly design
Applications:
· Pharmaceutical granulation and pulverization
· Food ingredient size reduction
· Cosmetic material blending
· Chemical powder processing
✅ Standard Multi Mill Model Specification
Parameter
Specification
Model Name
Multi Mill
Output Capacity
50 to 200 kg/hr (depending on material & screen)
Rotor Speed
750–1500 RPM (variable with VFD, if installed)
Motor Power
HP TO 7.5 HP / 3 Phase / 1440 RPM
Screen Diameter
260-300 mm
Screen Hole Sizes
0.25 mm to 12 mm (interchangeable)
Material of Construction
SS 304 (SS 316 optional for contact parts)
Feeding Method
Hopper with gravity feed
Discharge Arrangement
Inline bottom discharge with container port
Safety Features
Emergency stop, overload protector, locking lid
Mounting
Castor wheels for mobility or fixed legs
Net Weight
~150–200 kg
Compliance
cGMP / FDA / CE compliant (as per configuration)
Optional Features
Selective Features to Opt in Multi Mill
· AC frequency drive for variable speed.
· Belt less Drive.
· Inline milling process with HSMG and Sifter.
· Flame Proof electrical.
In which industry is Multi Mill used for which work?
🏭 Industries That Use Multi Mills
Pharmaceutical Industry
· Wet and dry granulation before tablet compression
· Pulverizing of raw materials (API and excipients)
· Blending and homogenizing powders
· Rework of tablets (grinding defective tablets back into powder)
Chemical Industry
· Pulverizing dyes, pigments, and powders
· Size reduction of catalysts and chemicals
· Granulation of materials for easier handling or reaction control
Food & Beverage Industry
· Grinding of spices, herbs, and condiments
· Crushing and mixing of food powders (e.g., cocoa, sugar)
· Preparing premixes and seasonings
Cosmetic Industry
· Mixing and milling of powders used in makeup, skincare, etc.
· Homogenizing herbal extracts and creams (in powder form)
· Processing raw materials like clays and binders
Ayurvedic & Herbal Industry
· Grinding leaves, roots, barks into fine powders
· Making herbal granules for capsules or tablets
· Blending of natural ingredients
Agriculture & Fertilizer Industry
· Pulverizing seeds, grains, roots
· Granulating organic or chemical fertilizers
· Processing animal feed components
Pesticide & Insecticide Industry
· Grinding powders for dusting agents
· Pre-processing materials for spray formulations
· Preparing fine chemical blends
Detergent & Soap Industry
· Milling detergent powders and soap bases
· Granulating raw materials for uniform product mixing
HOW TO SELECT A MULTI MILL?
Choosing a Multi Mill (commonly used in pharmaceutical, chemical, cosmetic, and food industries) requires evaluating several factors to ensure it meets your production and material handling needs. Here's a comprehensive guide on how to choose a Multi Mill:
✅ Purpose of Use
· Material Type: What material are you processing—powder, granules, wet mass?
· End Goal: Are you doing size reduction, granulation, pulverization, or mixing?
✅ Capacity Requirements
· Batch Size: Choose based on your average and peak batch sizes.
· Output per Hour: Typical multi mills range from 50 to 200 kg/hr or more.
· Ensure the motor and sieve can handle your expected throughput.
✅ Design and Construction
· GMP Compliance: Crucial for pharmaceuticals—ensure it's built with SS 304 or SS 316 stainless steel.
· Contact Parts: Must be made of food/pharma grade steel.
· Ease of Cleaning: Look for quick dismantling design for easy cleaning and changeover.
✅ Blades and Screens
· Rotor Design: Knife, impact, or screen type depending on your application.
· Screen Types: Hole size (0.25 to 12 mm) affects granule size—choose based on your required fineness.
· Look for interchangeable screens for flexibility.
✅ Motor and Drive
· Motor Power: Commonly 1–5 HP motors—more for industrial-scale operations.
· Variable Speed Option: VFDs allow better control of processing speed.
✅ Safety Features
· Mechanical Safety: Ensure the machine has overload protection, emergency stop, and safety guards.
· Electrical Safety: Check for compliant electrical systems and grounding.
✅ Automation and Controls
· Manual vs Automatic: Decide if you want a semi-automatic or fully automatic setup.
· PLC Integration: For better control in automated plants.
✅ Mobility and Mounting
· Caster Wheels: Required if you need to move it around frequently.
· Fixed Base: Better for vibration control in a permanent setup.
✅ Brand and After-Sales Support
· Choose Masterly® Engineering a reputable manufacturer with:
o Proven track record in your industry
o Availability of spare parts
o Service support and documentation
✅ Cost vs Value
· Don’t just compare price—evaluate value over time, including durability, support, and downtime.
📝 Questions to Ask the Masterly Engineering as your preferred Supplier
· Can you provide performance validation data?
· What sieves and rotors are available?
· What are the lead time and warranty terms?
What is the difference between co Mill and multi Mill?
Key Differences:
Feature
Co-mill (Conical Mill)
Multi-mill
Principle
Impeller and screen
Impact and shearing
Material Handling
Dry and not extremely hard materials
Slightly hard, wet, and lumpy materials
Applications
De-lumping, de-agglomeration, fine grinding
Granulating, pulverizing, shredding, chopping
Output
High percentage near sieve size, lower fines
Wider range of particle sizes
Milling Action
Gentle
More aggressive
