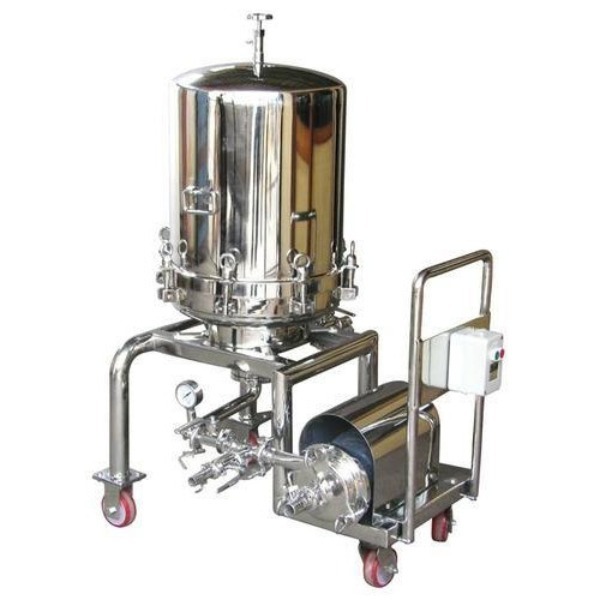

A sparkler filter press machine is a type of filtration equipment commonly used in industries like pharmaceuticals, chemicals, food & beverage, and cosmetics to clarify liquids by removing suspended particles. It's especially popular for filtering viscous liquids, syrups, oils, and herbal extracts.
Key Features of a Sparkler Filter Press:
- Filtration Plates (Discs):
- The machine contains multiple horizontally stacked filter plates (usually stainless steel), fitted with filter media like cloth, paper, or membranes.
- The number of plates can vary depending on capacity requirements.
- Closed System:
- It's a fully enclosed system that prevents contamination and exposure to the environment, making it ideal for hygienic applications.
- Central Feeding Mechanism:
- The unfiltered liquid is pumped into the center of the filter pack and flows outward through the filter plates.
- The solid particles are retained on the filter media, while the filtered liquid exits through the outlet.
- Filter Media:
- Filter cloths, papers, or cartridges can be used, depending on the required filtration fineness.
- Horizontal Plate Orientation:
- The horizontal configuration helps distribute pressure evenly and reduces the risk of channeling or bypassing.
- Drainage & Cake Removal:
- After filtration, the filter cake (accumulated solids) can be removed manually by disassembling the plates, or in some designs, with special discharge systems.
Advantages:
- High Clarity Filtration
- Compact & Modular Design
- Scalable (number of plates can be adjusted)
- Minimal Wastage
- Easy Maintenance
- Closed Operation = Cleaner Process
Typical Applications:
- Pharmaceutical syrups and injectables
- Edible oil clarification
- Herbal and essential oils
- Paints and inks
- Perfumes and cosmetics
Materials of Construction:
- Stainless Steel 304 / 316 (for pharmaceutical and food-grade uses)
- Can also be lined or coated depending on chemical compatibility.
Options & Customizations:
- Heating jackets (for viscous materials)
- Explosion-proof designs
- Different sizes & plate counts
- CIP (Clean-In-Place) systems
